Compact Polishing Lathe with Optional Flexshaft

Cyber

Compact Polishing Lathe with Optional Flexshaft

Item #
310-029-GRP

Not only is it the best-made small polishing motor we've found, it's the most versatile. In its standard configuration, the motor has 2 tapered spindles and 2 muslin buffs: one for cutting and one for finishing and both 3" in diameter. The infinitely variable speed control has a range of 200 to 8500 RPM. Measures only 7-1/2"W x 5"D x 6"H. Shaft height is 3-1/2" on center. Cast iron base insures stability. Sealed motor prevents dust particles from accumulating on the armature. Shafts are 8 mm in diameter. Holes are provided in the base for securing to work surface. (see related products below) Made in China.

Grouped product items Grouped product items
Item # Description Price Qty
Cyber
310-029
Motor, spindles, and buffs
Special Price $69.50 Regular Price $79.55
each
+
310-029-15
Flexible Shaft (with sheath): 36" long.
$18.90
each
+
236-971-01
No. 30-style handpiece (with chuck key)
$21.20
each
+
310-029-12
Drill Chuck: Used to hold burs, brushes, etc.
and has a chucking capacity of
0.6 to 6.5 mm. 8mm bore, right side only.
$15.90
each
+
310-029-03
Flanged Arbor: Made specially for this motor.
Has 10 mm threaded shaft and is used to support the
Fiber Wheel or the Felt Buff shown below. 8mm, bore
right side only.
$5.25
each
+
140-782
Fiber Satin Finish Wheel
3" x 3/4"
$4.05
each
+
140-780
Felt buff
3" x 1/2" thick
$13.50
each
+
130-784
Bristle Brush, 3" dia (3/4" trim)
$3.75
each
+
310-029-01
Replacement right tapered spindle, 8 mm
$4.35
each
+
310-029-02
Replacement left tapered spindle, 8 mm
$4.35
each
+
140-784

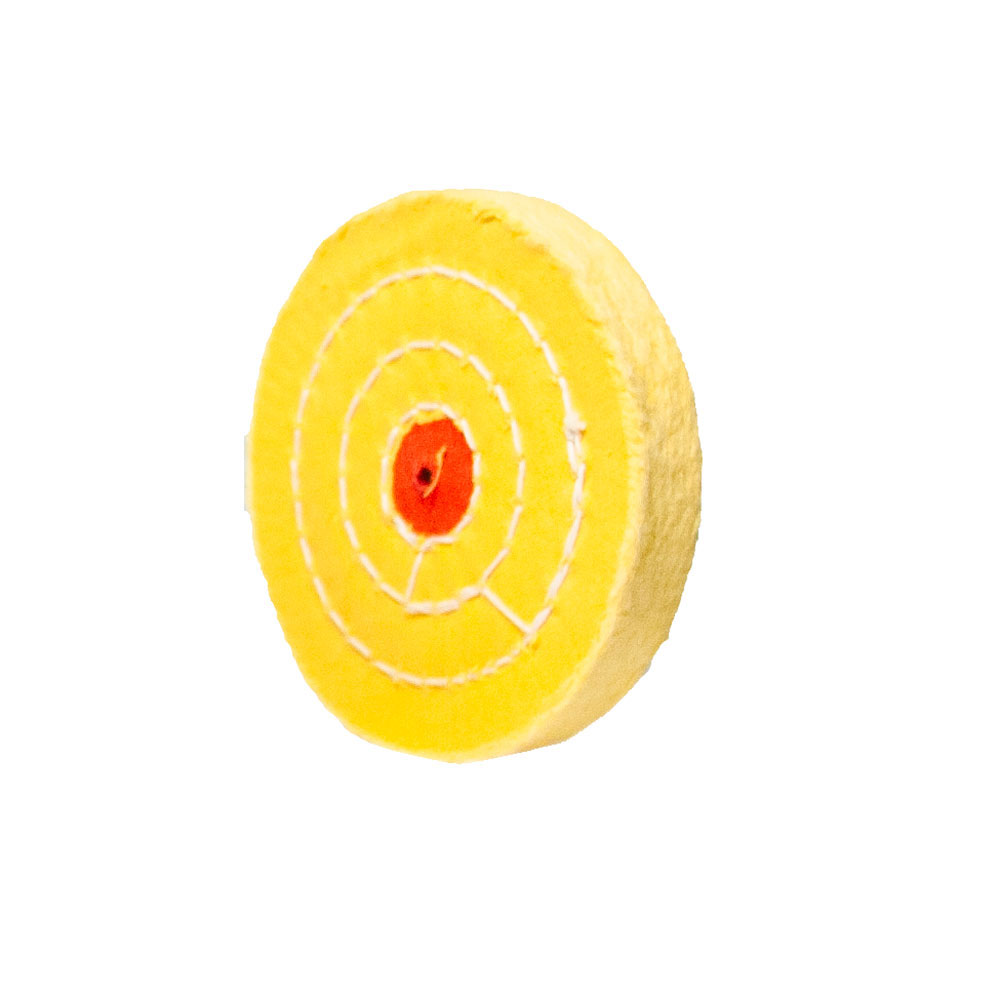

Replacement yellow buff (for finishing),
3"x40 ply
$3.35
each
+
140-786
Replacement white buff (for initial polish)
3"x40 ply
$2.79
each
+
310-025-09
Replacement carbon brushes x 2
$1.60
each
+

Product Details

Optional accessories include a Flanged Arbor for holding the optional compressed fiber Satin Finish Wheel or the optional Felt Buff. A unique option is the 36" Flexible Shaft and Sheath used with the optional no. 30-style Handpiece with its Jacob-style chuck that holds attachment up to 5/32" in dia. The Flexible Shaft and the Handpiece are sold separately. Another option is the adjustable Drill Chuck (0.6 to 6.5 mm capacity) that allows you to mount drills, burs, mounted stones, bristle brushes, miniature buffs, and mounted rubberized abrasives on your polishing motor.

The standard Compact Polishing Lathe is furnished with two tapered spindles, one white muslin buff, one yellow-treated muslin buff, a hex wrench, and a replacement pair of carbon brushes. Shaft diameter is 8 mm and shaft height is 4". 110 volts, 300 watts. Made in China.
