HV120 Vulcanizer

HV120 Vulcanizer

Item #
175-313-GRP
Out of Stock

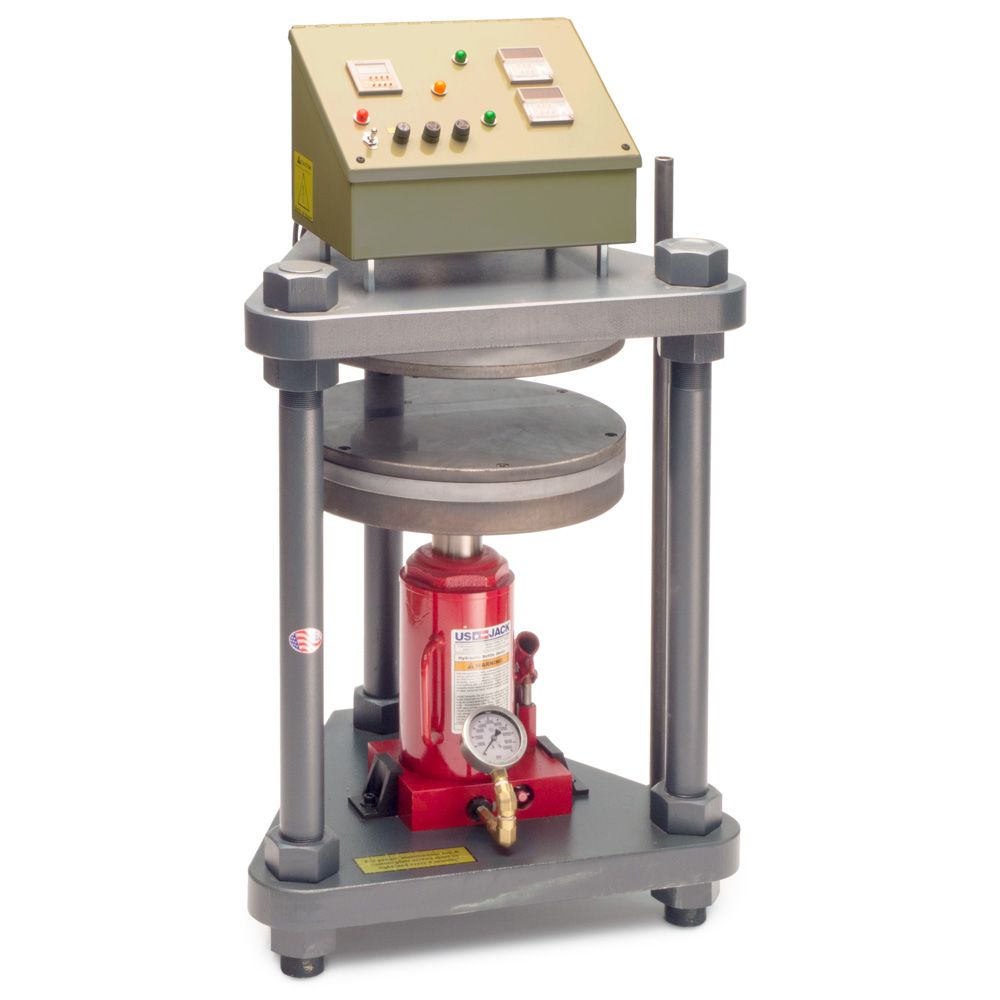

The Contenti HV120 Vulcanizer can cure rubber molds up to 12" in diameter and 5" thick. The ram plate of an HV120 is suspended independently of the stress columns so that it cannot jam against them. The support plates are 2" thick and will never warp. The top support plate is adjustable so that your heating platens can be realigned. Precision ground and warp resistant working platen surfaces assure perfect flatness.

  • Hydraulic Jack 30 tons max
  • Requires small floor space. Self-contained and ready for operation.
  • Separate and independently operating digital temperature controllers.
  • Liquid Filled Pressure Gauge
  • Three adjustable columns for precise alignment and parallelism.
  • Auto on/off cycle timer sets ranges from 1 sec. to 99 hours.
  • Voltage is 220 volts, single phase.

Measures 24" x 20" x 45" and weighs 603 pounds. Crating charges are additional. Made in USA.

Please call or email us to order this product. Additional costs for crating and motor freight shipping must be added to the base price.
Grouped product items Grouped product items
Item # Price Qty
175-313
$4,315.00
each
+
